Membrane Nitrogen Generators

Membrane nitrogen generators offer reliability and ease

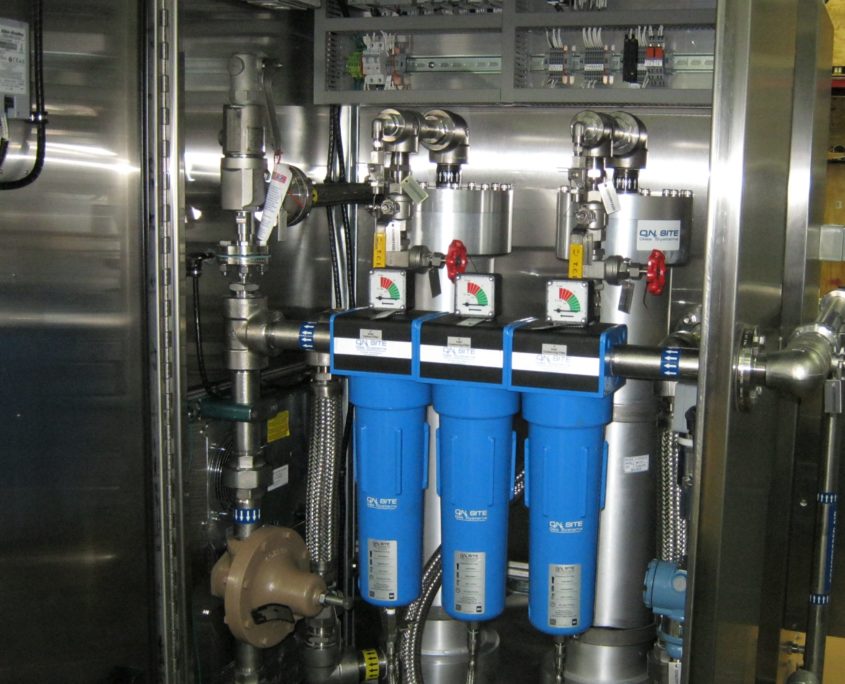

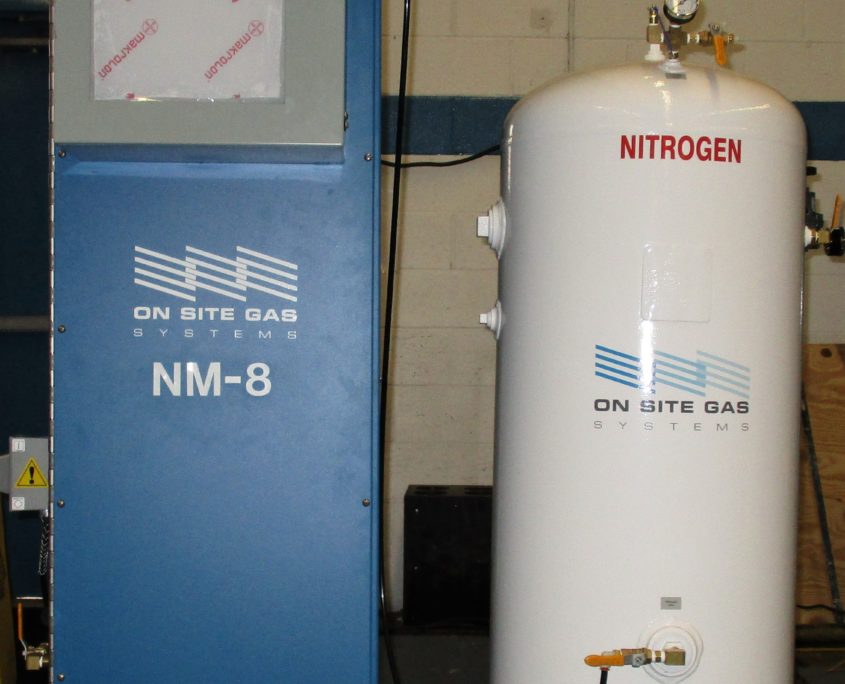

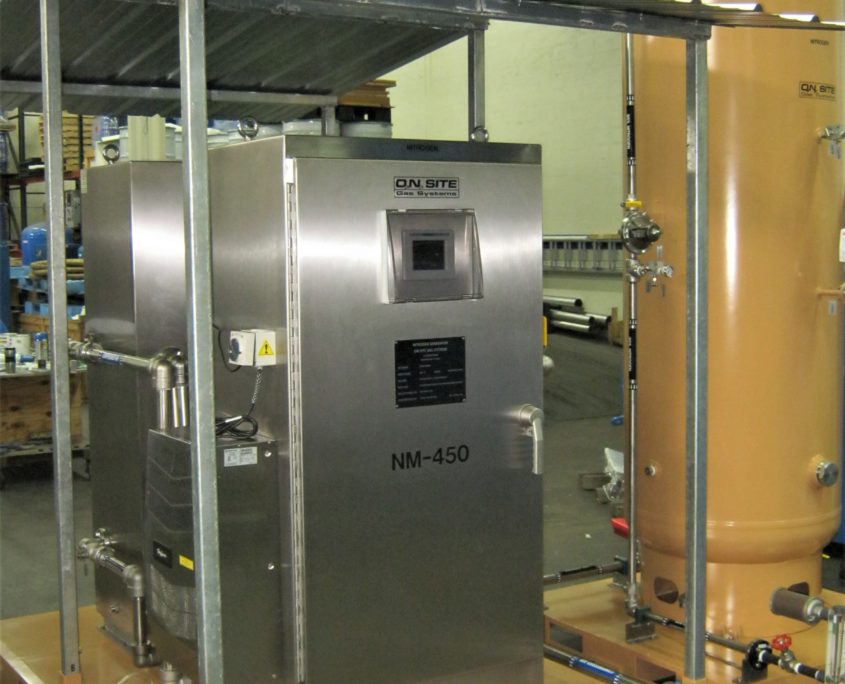

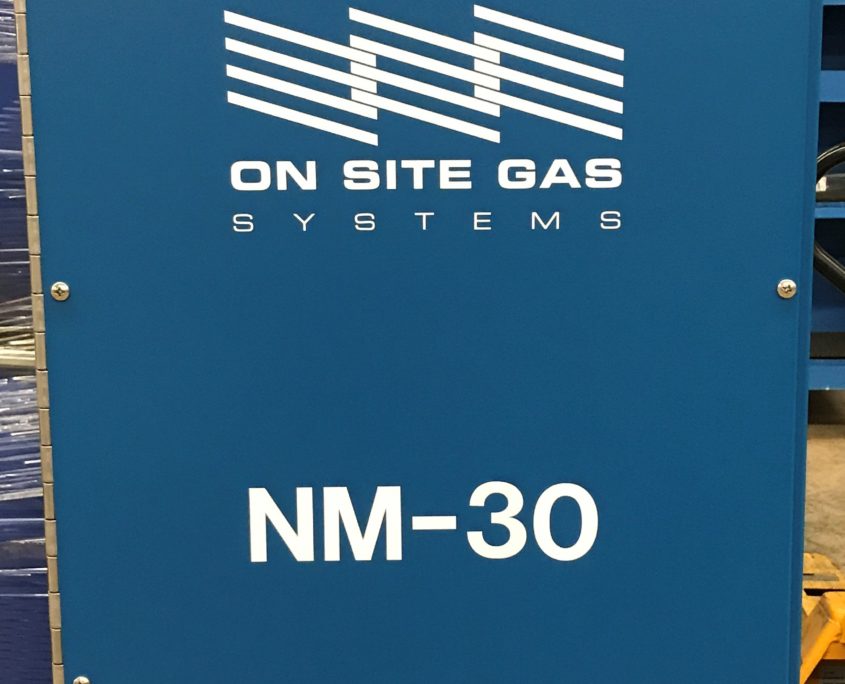

The nitrogen membrane generator is a complete turnkey system. It arrives at your location and you put it online. We design and build membrane nitrogen generators to your specifications. We can match our membrane nitrogen generators to your compression equipment for any application.

  • Nitrogen Membrane
  • Nitrogen Membrane
  • Nitrogen Membrane
  • Nitrogen Membrane
  • Nitrogen Membrane
  • Nitrogen Membrane
123456

How a Nitrogen Generator Membrane Works

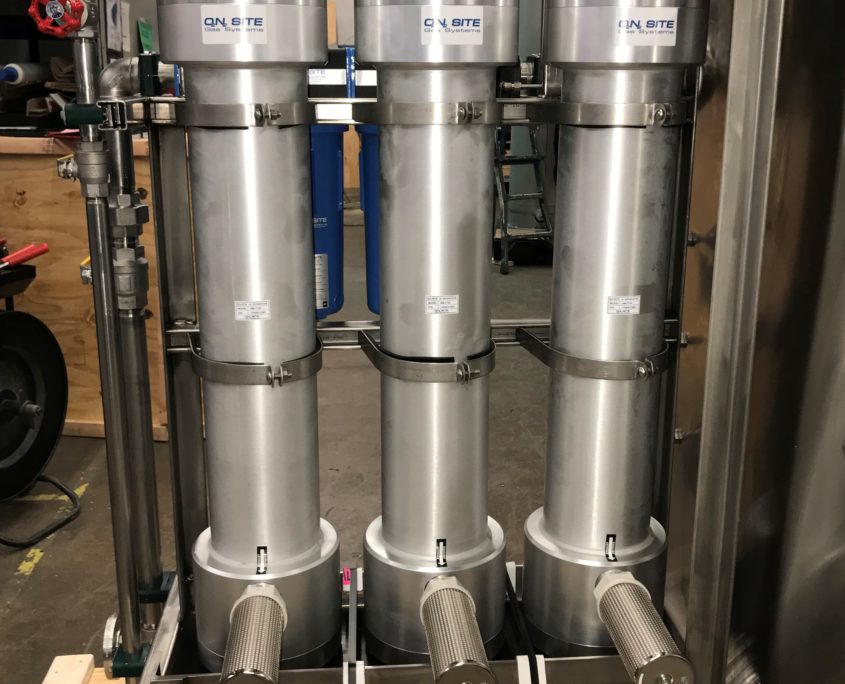

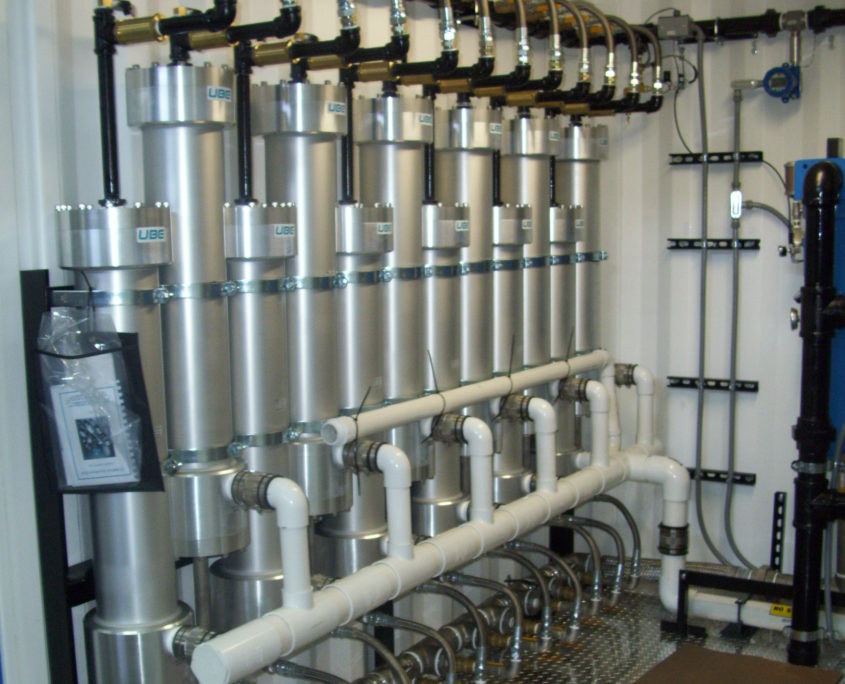

Pressurized air is fed to one end of the hollow fiber membranes. Membranes contain a bundle of hollow fibers with holes small enough to allow the smaller oxygen molecules to exit through them under pressure. The permeation rates of water vapor, CO2, and oxygen contained in the air stream are faster than nitrogen and argon and will rapidly diffuse through the fiber walls. The slower diffused nitrogen molecules remain in the fiber bore and are collected as the nitrogen product gas. The air flow rate will determine how much undiffused oxygen remains with the nitrogen gas. The nitrogen product gas is extremely dry, with atmospheric dew points typically below -40°F. The membranes act like a filter with no moving parts and continuously generate nitrogen at selected flow and purity.

For more information about our nitrogen membrane generator, please contact us.
